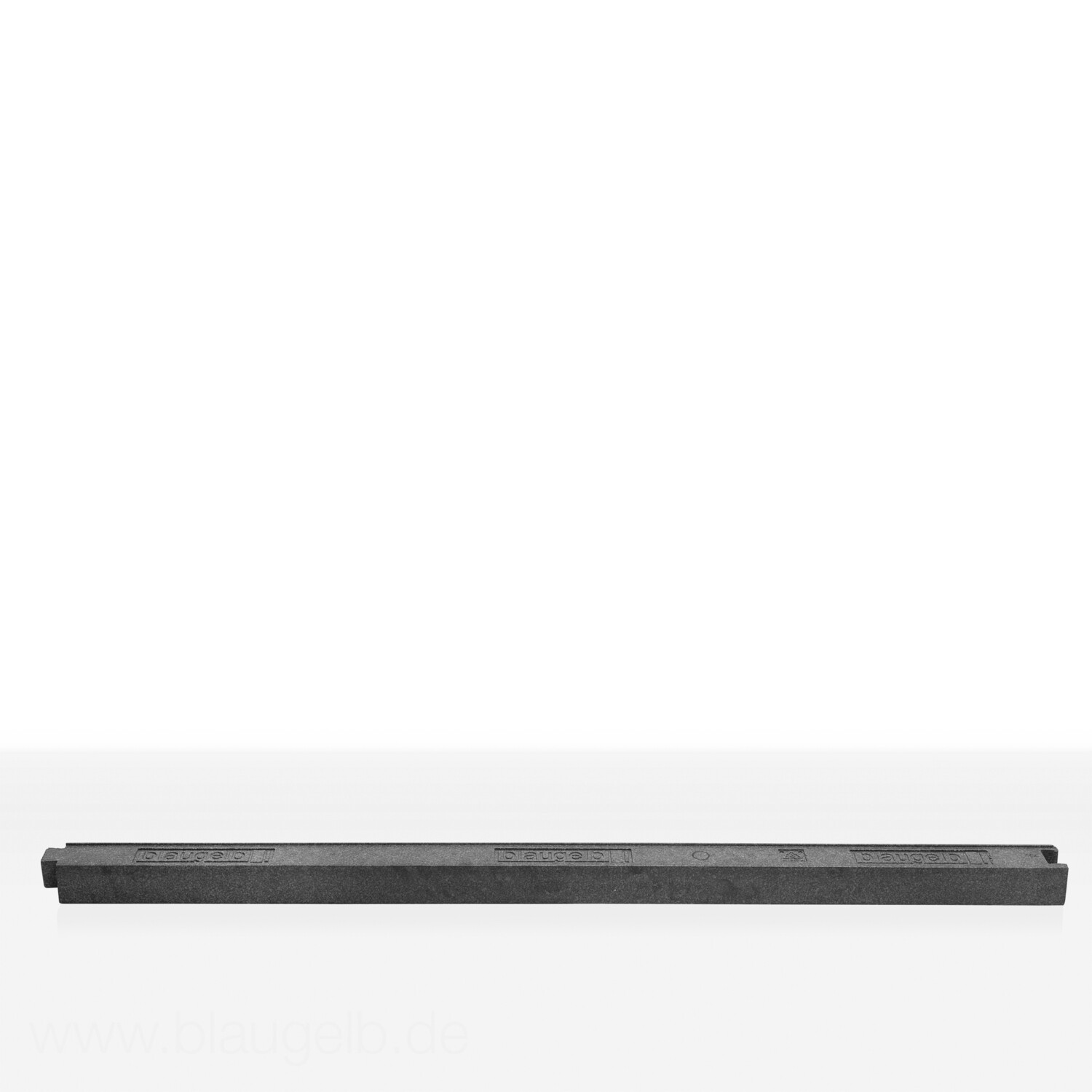

Plinth Thermal Insulation Profile EPS – 30/50/100 × 64 × 1,175 mm
5.0
1 review
Reviews from verified customers who have purchased products at this store.
€15.00
Packer Height
High-density structural EPS threshold support for entrance and balcony doors, providing a strong, thermally insulating and moisture-resistant base at floor level.
In stock
Save this product for later
Customer reviews
Reviews only from verified customers
Reviews are only accepted from verified customers who have signed in and purchased the products. This ensures that each review is based on genuine customer experiences. All reviews are checked before publication to prevent spam.
Brian D.
Killarney,
Ireland
09.02.2026
This customer didn’t leave a review but rated the product.
Plinth Thermal Insulation Profile EPS – 30/50/100 × 64 × 1,175 mm
Product Details
DESCRIPTION
Structural thermal insulation profile for door thresholds
The blaugelb Plinth Thermal Insulation Profile EPS is a high-density structural insulation profile developed specifically for use beneath entrance doors, balcony doors and other threshold elements.
It provides a strong, thermally insulating and moisture-resistant substructure between the door threshold and the supporting building structure, helping to reduce thermal bridging at floor level.
The profile is manufactured from high-density EPS with high ductility and combines very high compressive strength with low thermal conductivity, dimensional stability and excellent resistance to moisture.
Each profile is 64 mm wide and 1,175 mm long. The profiles can be connected end-to-end using the integrated dovetail joint, allowing virtually any required length to be created with minimal waste.
Profiles can also be combined vertically using the integrated tongue-and-groove connection, making it possible to adapt the support height to the required threshold detail.
PRODUCT BENEFITS
- Structural thermal insulation profile for door and balcony-door thresholds
- Helps reduce thermal bridging at floor-level connections
- High-density EPS with very high compressive strength
- Suitable for timber, timber-aluminium, aluminium and PVC door systems
- Moisture resistant, mould-proof and resistant to rot
- Very high dimensional stability
- Infinitely extendable in length using integrated dovetail joints
- Can be combined in height using the tongue-and-groove connection
- Low weight and easy to process on site
- Very low water absorption
- 100% recyclable
- Free from HCFCs, HFCs and HBCDs
- EMICODE EC1 Plus – very low emissions
- Independently verified Environmental Product Declaration (EPD)
APPLICATION
Threshold support
The blaugelb Plinth Thermal Insulation Profile EPS is designed for use as a thermally insulating substructure beneath entrance doors, balcony doors and similar floor-level elements.
It replaces conventional thermally weak packing or plastic support profiles with a strong and continuous insulation layer beneath the threshold.
Typical applications include:
- Entrance-door thresholds
- Balcony-door thresholds
- Floor-level door elements
- Thermally insulated plinth and threshold constructions
- Timber, timber-aluminium, aluminium and PVC door systems
- Custom threshold build-ups requiring different support heights
Extending the profile
The integrated dovetail connection allows individual 1,175 mm profiles to be connected positively end-to-end to create the required overall length.
This reduces cutting waste and allows the profile length to be adapted easily on site.
Increasing the support height
Where a greater threshold support height is required, suitable Plinth Thermal Insulation Profiles can be combined vertically using the integrated tongue-and-groove connection.
This allows the thermal support to be adapted to the required floor and threshold construction without introducing additional metal connectors between the insulation profiles.
Bonding, sealing and fixing
The profile should be installed on a suitable, load-bearing construction detail and protected against moisture in accordance with the required threshold and waterproofing design.
The manufacturer's technical documentation specifies Power FIX hybrid polymer adhesive and sealant for sealing the profile to the frame or structural element.
Mechanical fixing must be selected to suit the relevant door system, substrate, loads and installation detail.
Waterproofing
Particular attention must be paid to waterproofing at floor-level door connections.
The completed detail must provide suitable protection against rising moisture, driving rain, internal moisture and lateral moisture from the adjoining construction.
Only sealing and waterproofing products compatible with EPS should be used. Solvent-containing products or other materials that are not compatible with polystyrene must be avoided.
TECHNICAL DATA
| Property | Value |
|---|---|
| Material | High-density EPS (expanded polystyrene), high ductility |
| Colour | Grey |
| Available heights in this shop | 30 / 50 / 100 mm |
| Profile width | 64 mm |
| Profile length | 1,175 mm |
| Thermal conductivity λ10 | 0.0403 W/(m·K) |
| Thermal transmittance at 64 mm | U = 0.63 W/(m²·K) |
| Compressive load-bearing capacity at max. 2% total deformation | 1,260 kg/dm² |
| Compression stress at 2% compression | ≥ 1,435 kPa |
| Bending strength | ≥ 2,490 kPa |
| Shear strength | 0.217 N/mm² |
| Water vapour diffusion resistance μ | 228 |
| Water absorption after 28 days under water | ≤ 0.5 vol.% |
| Air permeability | Class 4 |
| Fire behaviour | B2 / Class E |
| Short-term temperature resistance | Up to +95°C |
| Long-term temperature resistance | Up to +85°C |
| Dimensional stability | Very high, including outdoor weathering |
| Ageing resistance | Mould-proof and does not rot |
| Emission classification | EMICODE EC1 Plus |
DOWNLOADS
Plinth Thermal Insulation Profile EPS – Technical Data Sheet
Official blaugelb / Meesenburg technical data and product specifications.
Download Technical Data Sheet (PDF)
Environmental Product Declaration (EPD)
Independently verified environmental product information for the blaugelb Plinth Thermal Insulation Profile EPS.
Download Environmental Product Declaration (PDF)
EMICODE EC1 Plus Certificate
Official low-emission classification for the blaugelb Plinth Thermal Insulation Profile EPS.
